Panels

Job Status

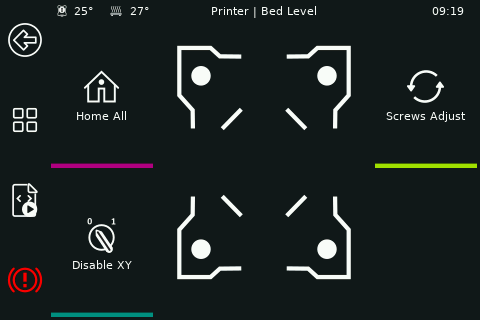

Bed Level

type: bed_level

The bed level panel has the ability to have preset locations from Klipper. Please see documentation on the following Klipper Sections:

Important Note: Due to Klipper using the bltouch/probe offsets in screws_tilt_adjust, if a bltouch/probe is enabled KlipperScreen will add the offset to the defined screw values. This will not occur if bed_screws section is used.

This panel will favor screws_tilt_adjust over the bed_screws section. If screws_tilt_adjust is defined, an extra button for Screws Calibrate will appear. This button runs the SCREWS_TILT_CALCULATE command and shows the results on the panel.
