Troubleshooting
First Steps
The first step to troubleshooting any problem is getting the cause of the error.
- Find KlipperScreen.log:
!!! warning "Important" This log file should be provided if you ask for support.
Depending on your setup the file could be accessible from the web interface alongside other logs

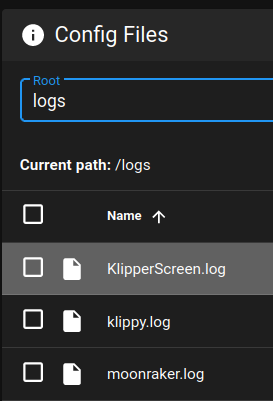

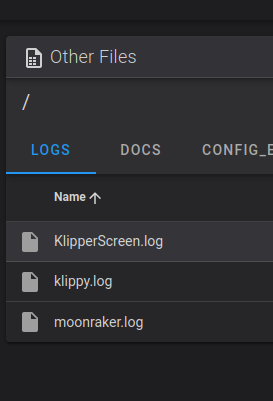

| Mainsail | Fluidd |
|---|---|
 |
 |
if you can't find it in the web interface, use sftp to grab the log (for example Filezilla, WinSCP)
Located at ~/printer_data/logsor in /tmp/ if the former doesn't exist.
System logs
If KlipperScreen.log doesn't exist:
systemctl status KlipperScreen
or
journalctl -xe -u KlipperScreen
Also the Xorg log where you can find issues with the X server:
cat /var/log/Xorg.0.log
Screen shows console instead of KlipperScreen
!!! abstract "If you see this line in the system logs:"
sh xf86OpenConsole: Cannot open virtual console 2 (Permission denied)
Follow this steps
!!! abstract "If you see this line in the system logs:"
sh xinit[948]: /usr/lib/xorg/Xorg: symbol lookup error: /usr/lib/xorg/modules/drivers/fbturbo_drv.so: undefined symbol: shadowUpdatePackedWeak
Follow this steps
!!! abstract "If you see this line in the system logs:"
sh KlipperScreen-start.sh: (EE) no screens found(EE)
First check the screen
[Maybe it's the wrong framebuffer](Troubleshooting/Framebuffer.md)
Screen is always white / black / blank or no 'No signal'

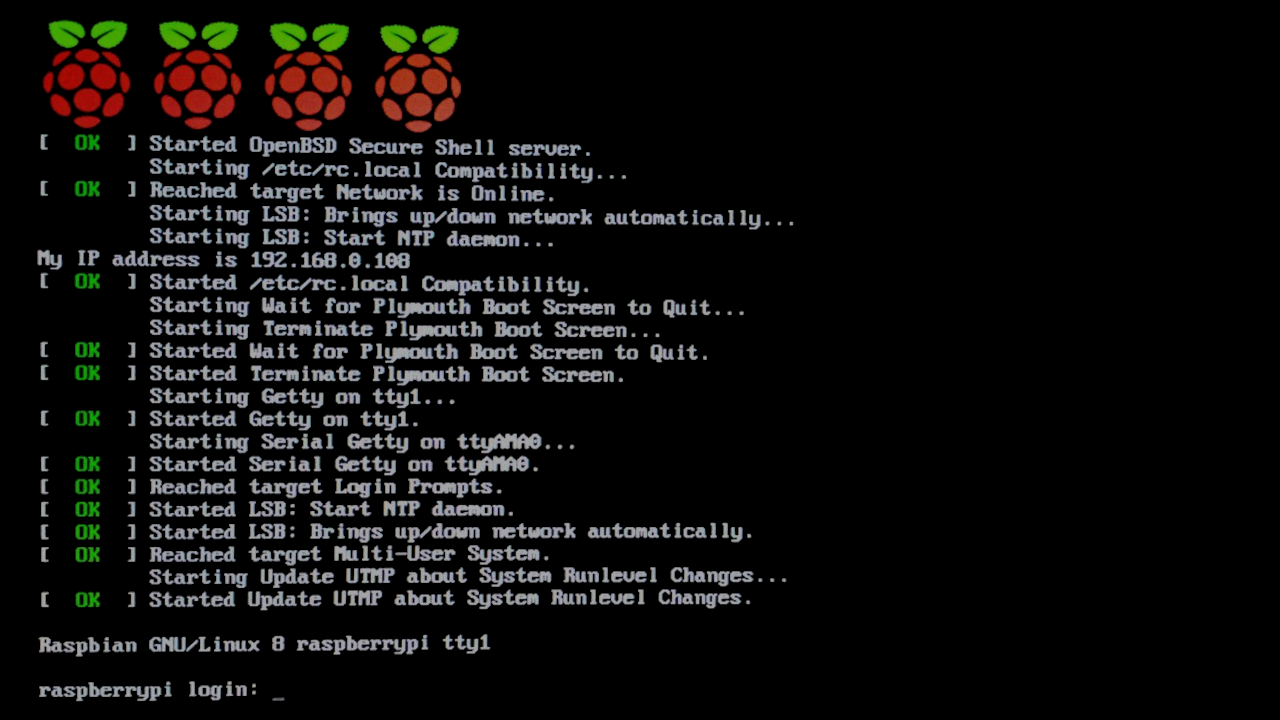

If the screen never shows the console even during startup, Then it's typically an improperly installed screen.
The screen shows colors or 'No signal' when idle
In KliperScreen settings find 'Screen DPMS' and turn it off.
Your screen doesn't seem to support turning off via software.
KlipperScreen will enable an internal screensaver to make it all black, and hopefully avoid burn-in. If you find a way of turning it off and you want to share it: Contact
Touch issues
Network panel doesn't list WI-FI networks
OctoPrint
KlipperScreen was never intended to be used with OctoPrint, and there is no support for it.
Other issues
If you found an issue not listed here, or can't make it work, please provide all the log files a description of your hw, and a description of the issue when asking for support
